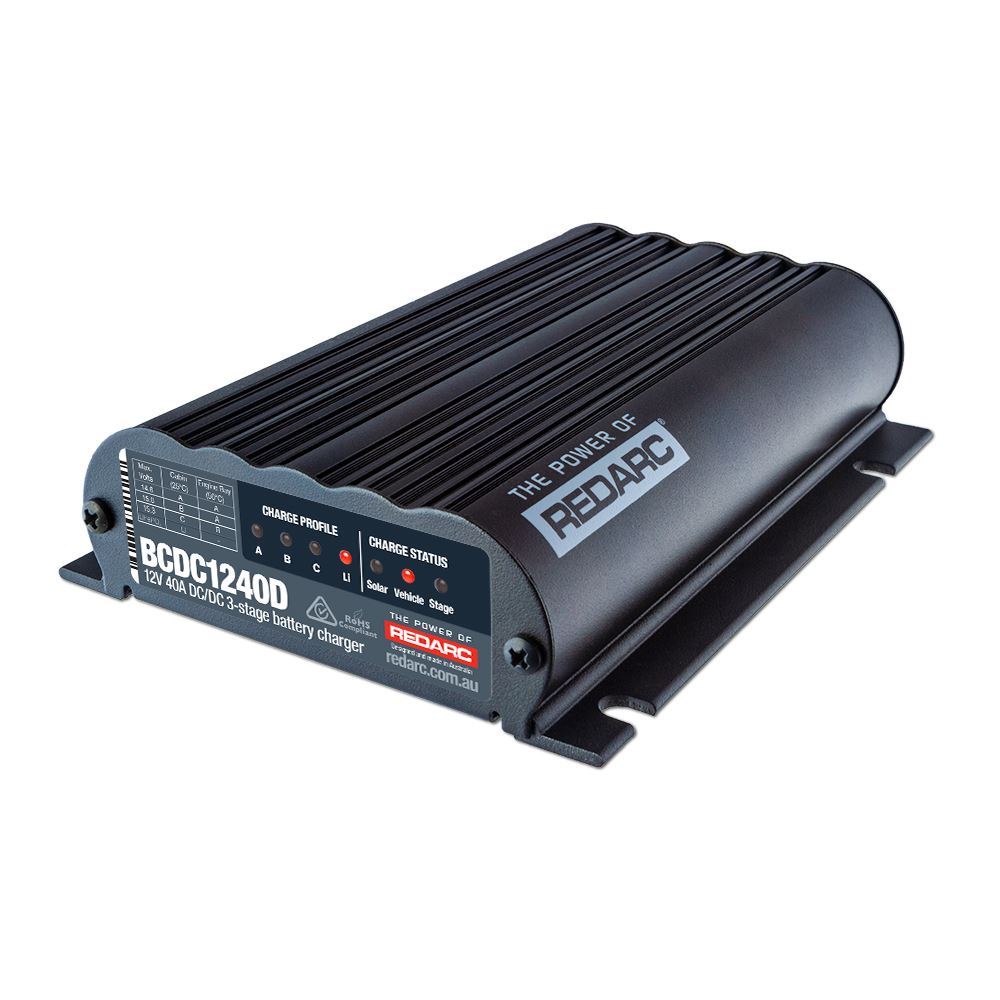

REDARC BATTERY CHARGER 12V 40A 3 STAGE AUTO BCDC1240D


Price:
Sale price$560.00

Description

The REDARC BCDC1240D is a 12V 40A In-vehicle DC to DC battery charger suitable for battery types including lithium, AGM, GEL, standard lead acid and calcium.

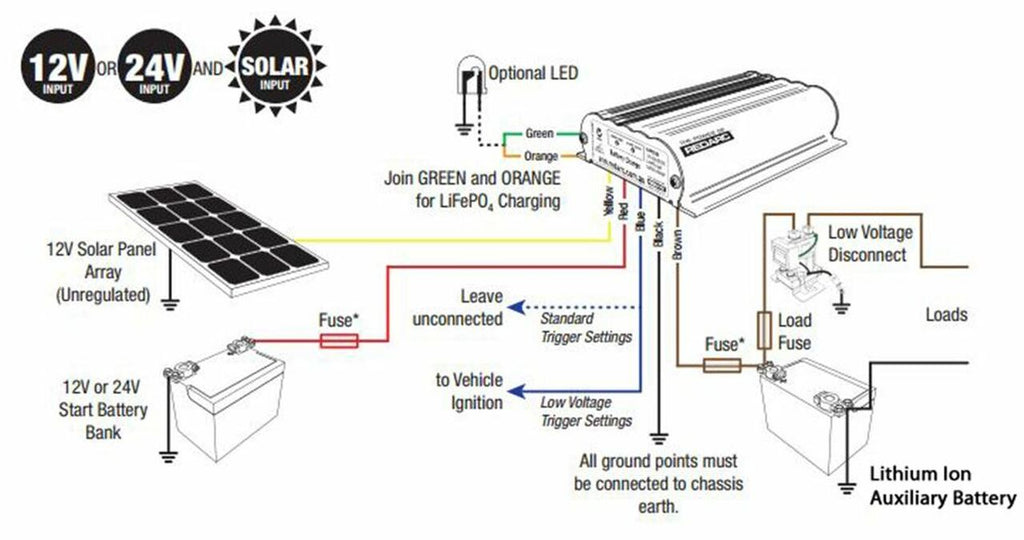

Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D will charge from both solar and the alternator simultaneously. With built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.

Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.

The BCDC1240D also comes with patented charging profiles, including a lithium charging profile perfect for pairing with a REDARC Lithium Battery. The 'Dual' input range will continue to charge all other types of batteries including AGM, GEL, standard lead acid and calcium.

As a guide, the BCDC1240D is used for battery bank sizes over 200AH. For smaller batteries of 75-200AH REDARC recommends the BCDC1225D



Proven and Tested

The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*

*large capacity battery banks may require a few cycles to fully charge.

Built in Australia and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.

If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.



Features

  • Separate DC and solar charging inputs
  • Maximises the performance and life of your auxiliary battery
  • Simultaneous DC and solar charging with Green Power Priority
  • Suits 12V/24V standard and variable voltage/smart alternators
  • Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
  • Suitable for use on vehicles with conventional alternator charging systems

SPECIFICATIONS :

Input (Operating) Voltage9 - 32VDC          Output System Voltage12VDC

Maximum Charging Voltage15.3V            Output Current Rating (Cont.)40A

Input Fuse Rating60A     Type ApprovalE-Mark       Output Fuse Rating60A

Warranty2 Years      Standby Current Draw<100mA       Output Power600W

Width (mm)120Height (mm)37Length (mm)165         Weight (kg)1
