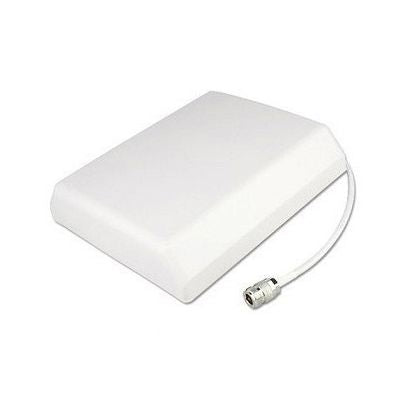

Blackhawk Wall Mount 698-2700 7_8dBi Panel Antenna


Price:
Sale price$105.00

Description

Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna, that can be mounted on a wall for repeater applications. Provides a 7dbi gain for 698-960 MHz Provides a 8dbi gain for 1710-2600 MHz The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of what frequency they operate on.

Main Technical Specifications:

Model BH-WAL-698/2700-65
Frequency range 698~960 MHz / 1710~2600MHz
VSWR <1.5
Input impendance 50Ω
Gain 7 / 8dBi
Polarization type Line polarization
E-plane beamwidth 65°
H-plane beamwidth 90°
F/B ratio ≥23dB
Max power 50W
Lightning protection DC ground
Connector Type N female
RG58/U cable L=300mm
Weight 600g
Dimensions 210mm×180mm×44mm
Radome material UV-Resistance ABS
Radome color White
Working temperature -40℃~+60℃

  • Model:698-2700 7/8dBi
