Description
12V series designed for different types of applications, such as small UPS, home energy storage, portable mobile
power supply and Recreational Vehicle, which is the best choice of small capacity, long time standby or cyclic use.
BMS is built into the battery system, which is responsible for collecting and analyzing the voltage, temperature and
current of the single cell. It has the functions of over -voltage protection, under -voltage protection, high
temperature protection, low temperature protection, short circuit protection and cell balance.
3 Year Warranty
SHIPPING : PLEASE CALL 07-3158 9693 FOR A QUOTE
2. Model parameters

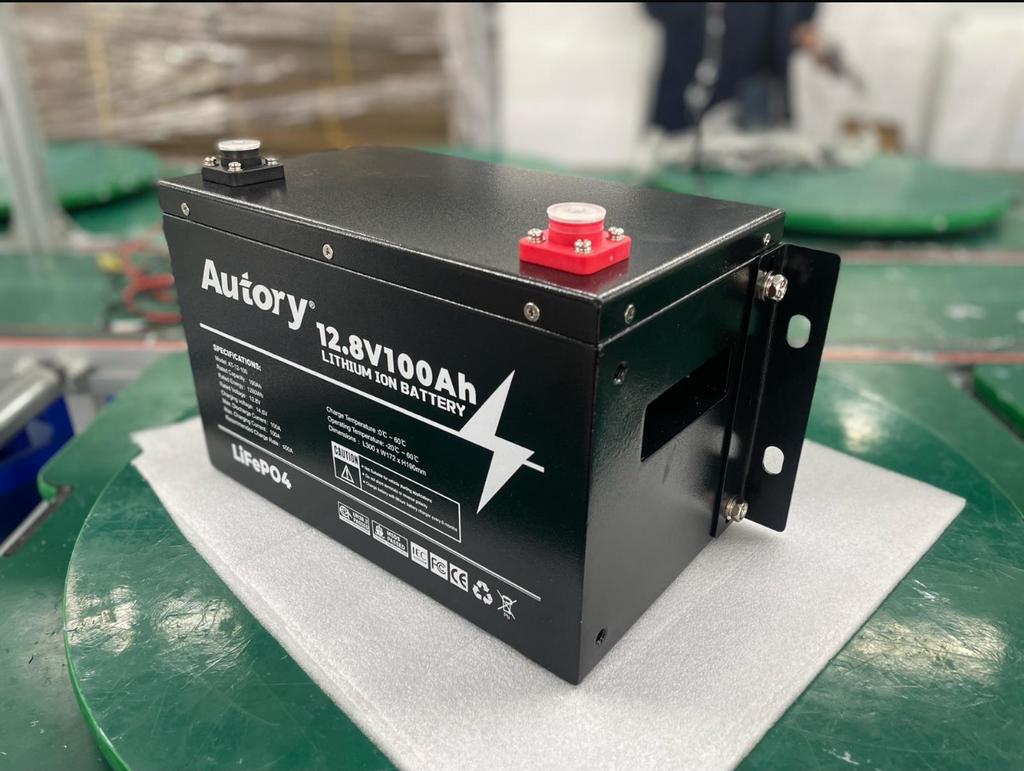

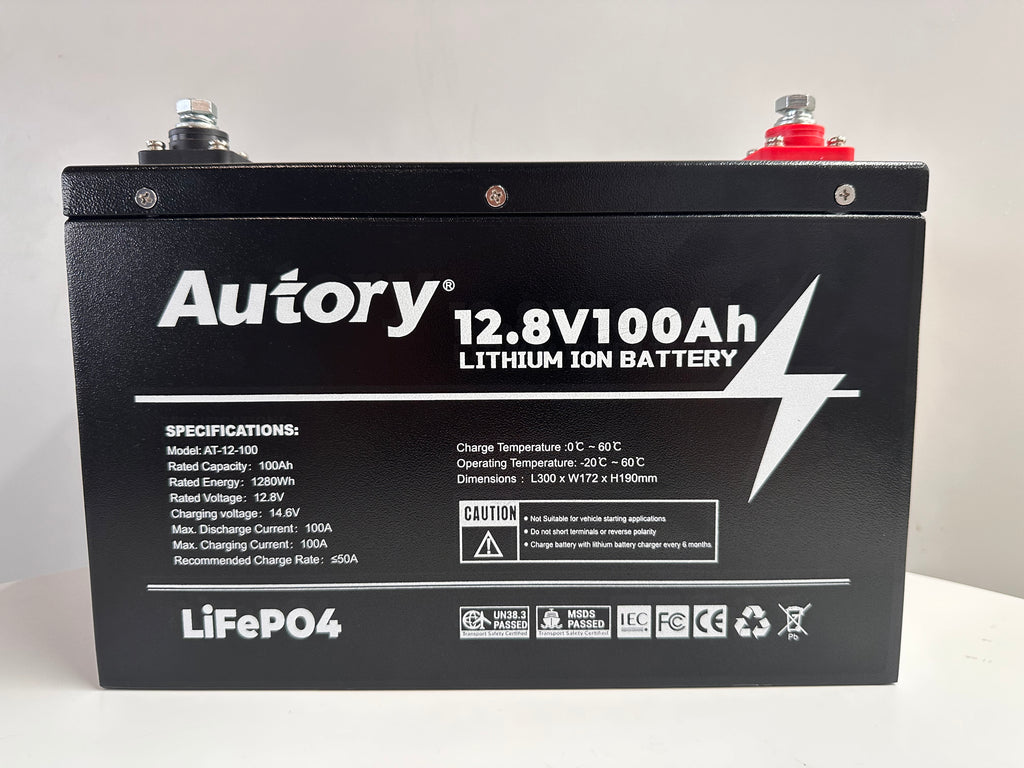

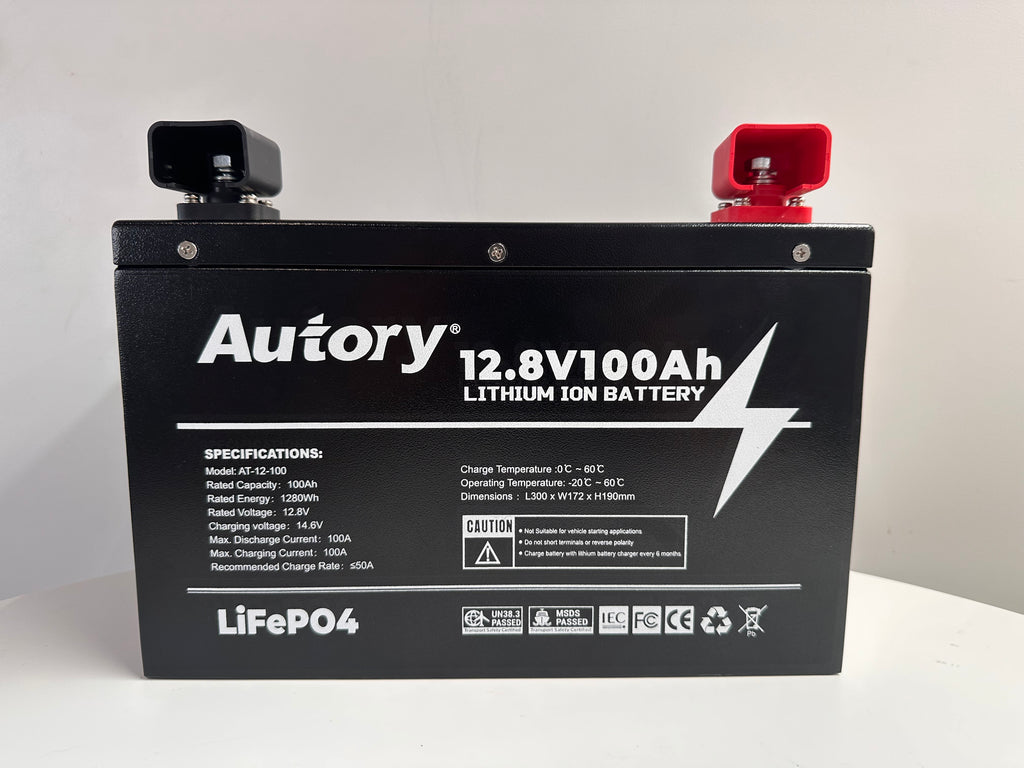

Model AT-12-100 (Metal Casing 13KG)
Nominal Voltage 12.8V
Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Nominal Capacity 100Ah
Watt Hour 1280Wh
Charge Method CC/CV
Max.Discharge Current 100A
Max.Charging Current 100A
Max.Charging Current（5sec） 200A
Dimension L300×W172×H190mm
Working Temperature Range Charge：0℃ to 60℃ Discharge：-20℃ to 60℃
Storage Temperature -10℃ to 50℃
3. Performance
High acquisition of voltage data collection （10mv）
Customized BMS function and parameter
Intelligent equalization management
Over Charging, Over Discharging, Over Temperature, Short Circuit Protection
